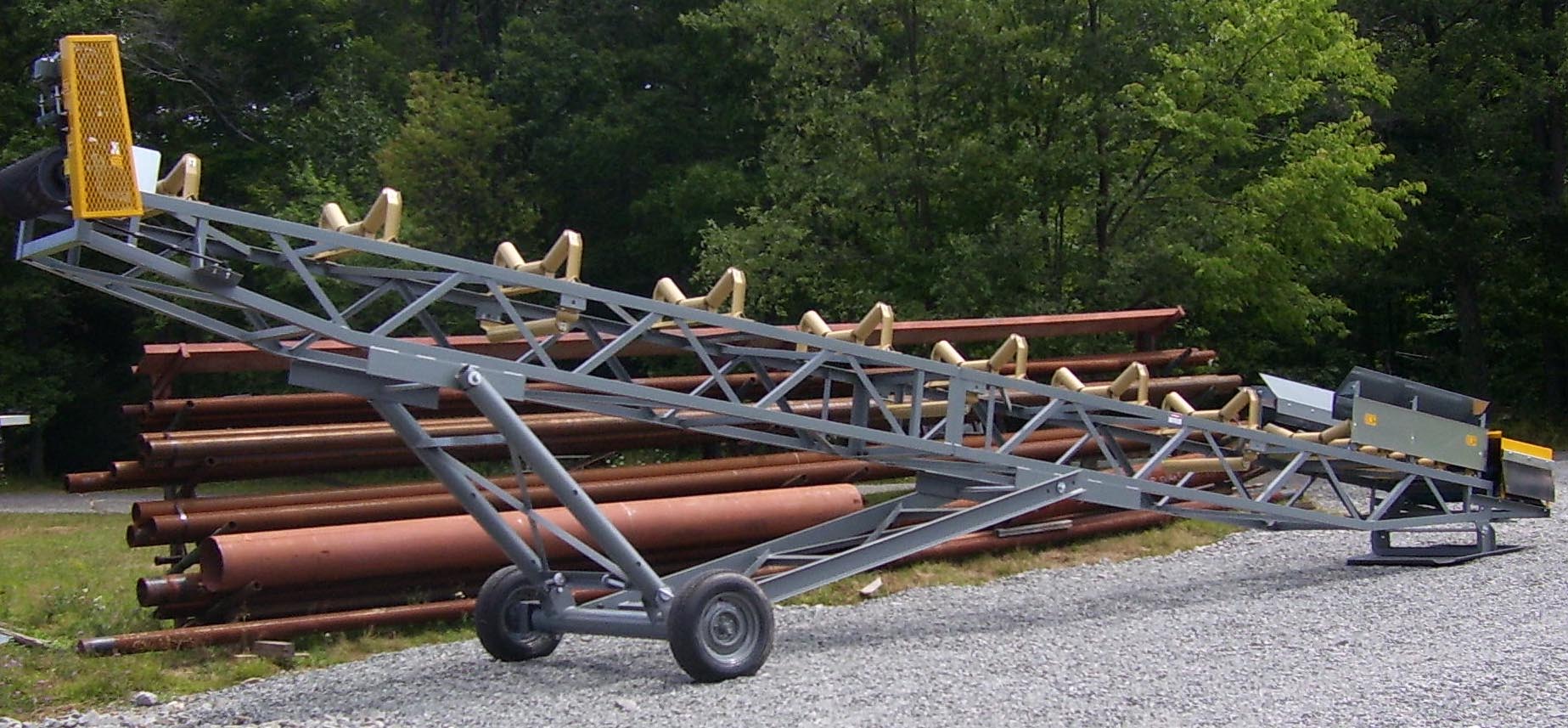

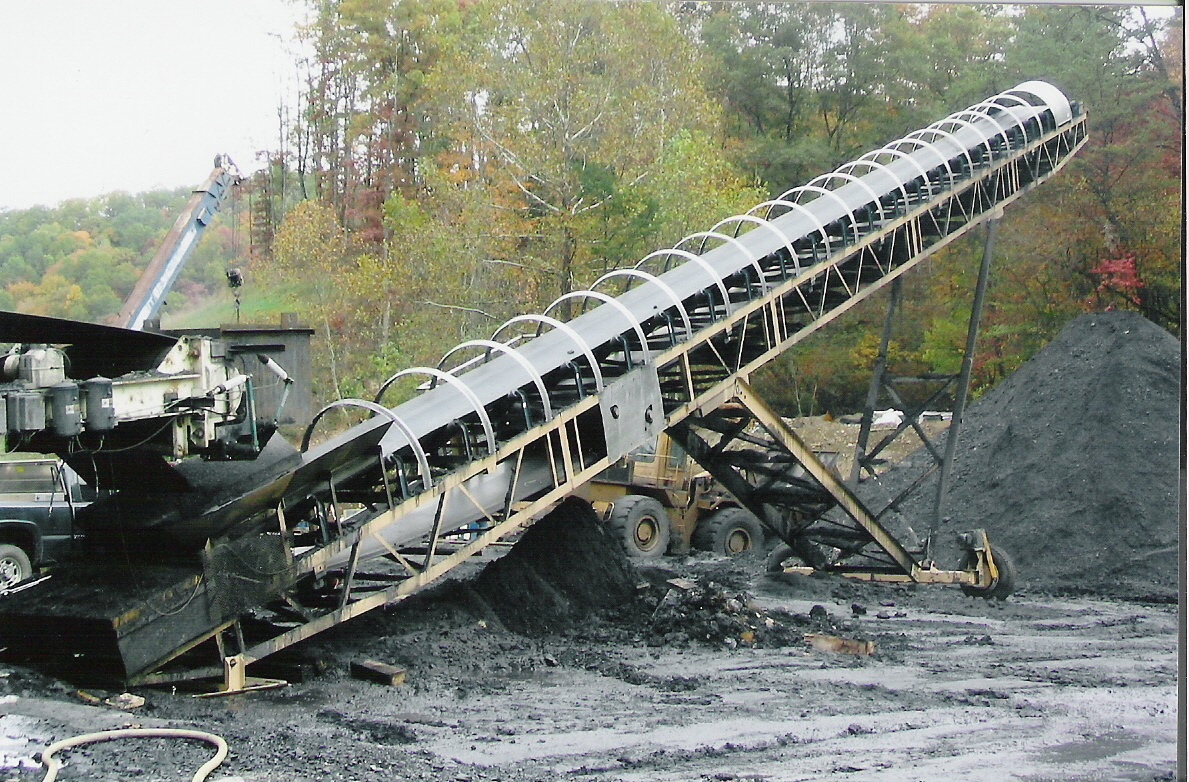

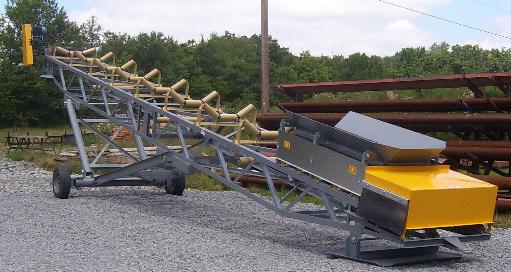

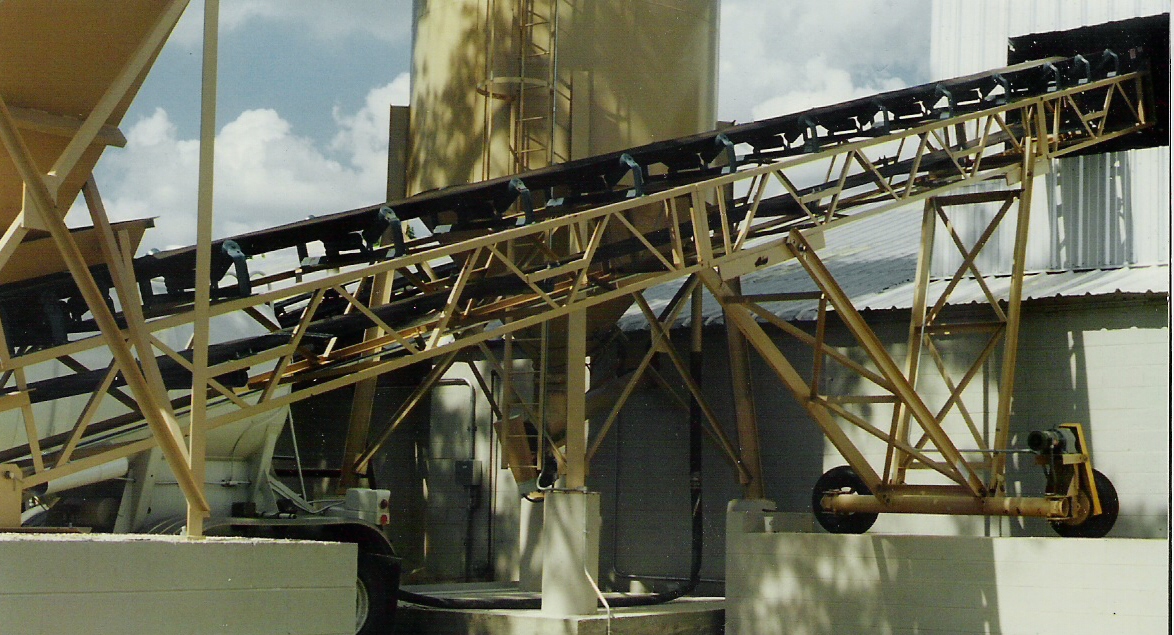

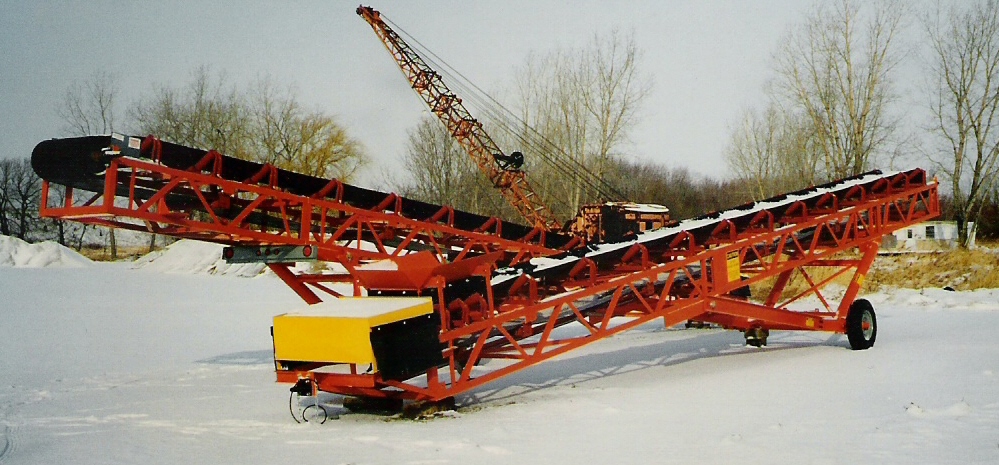

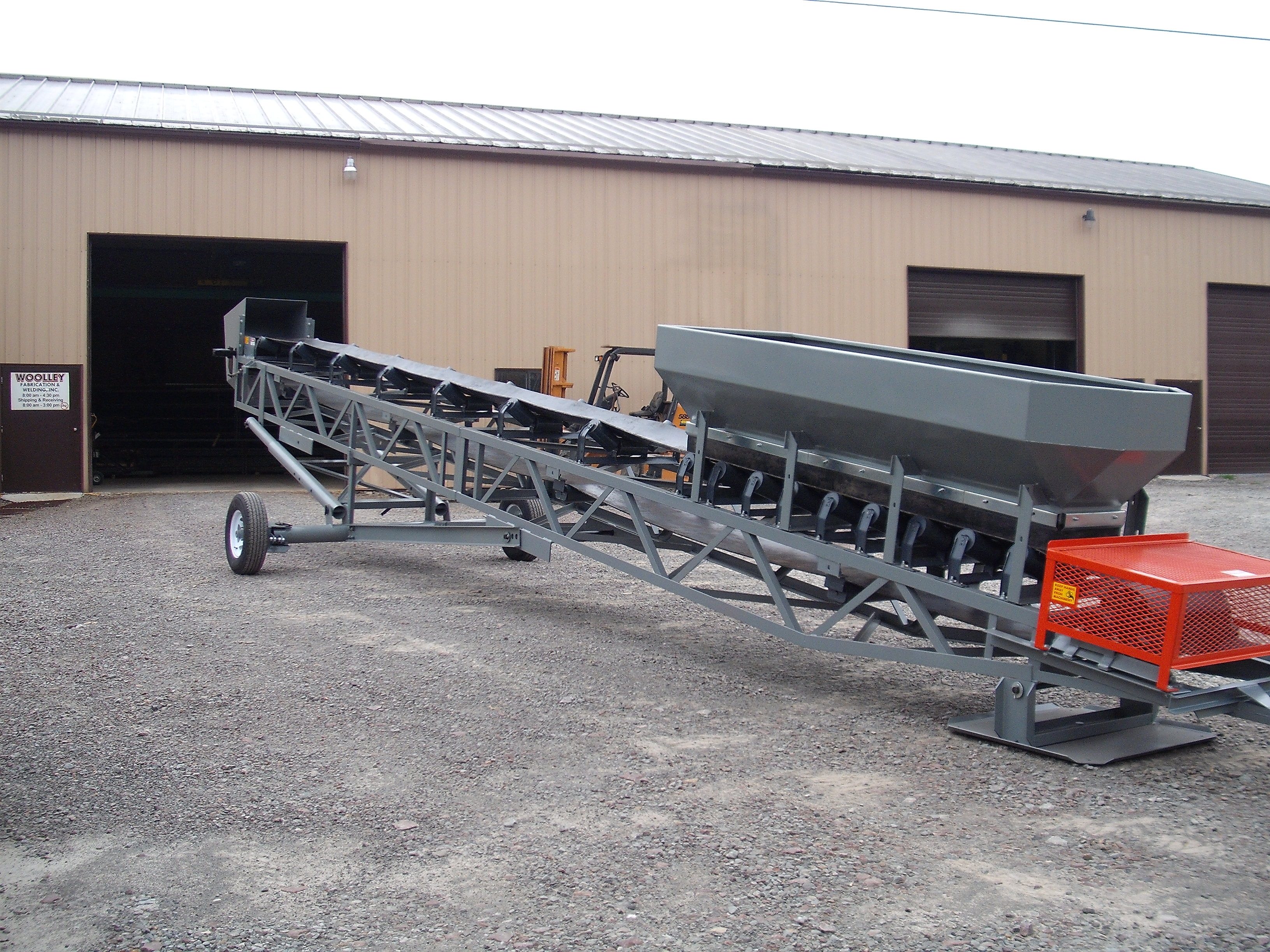

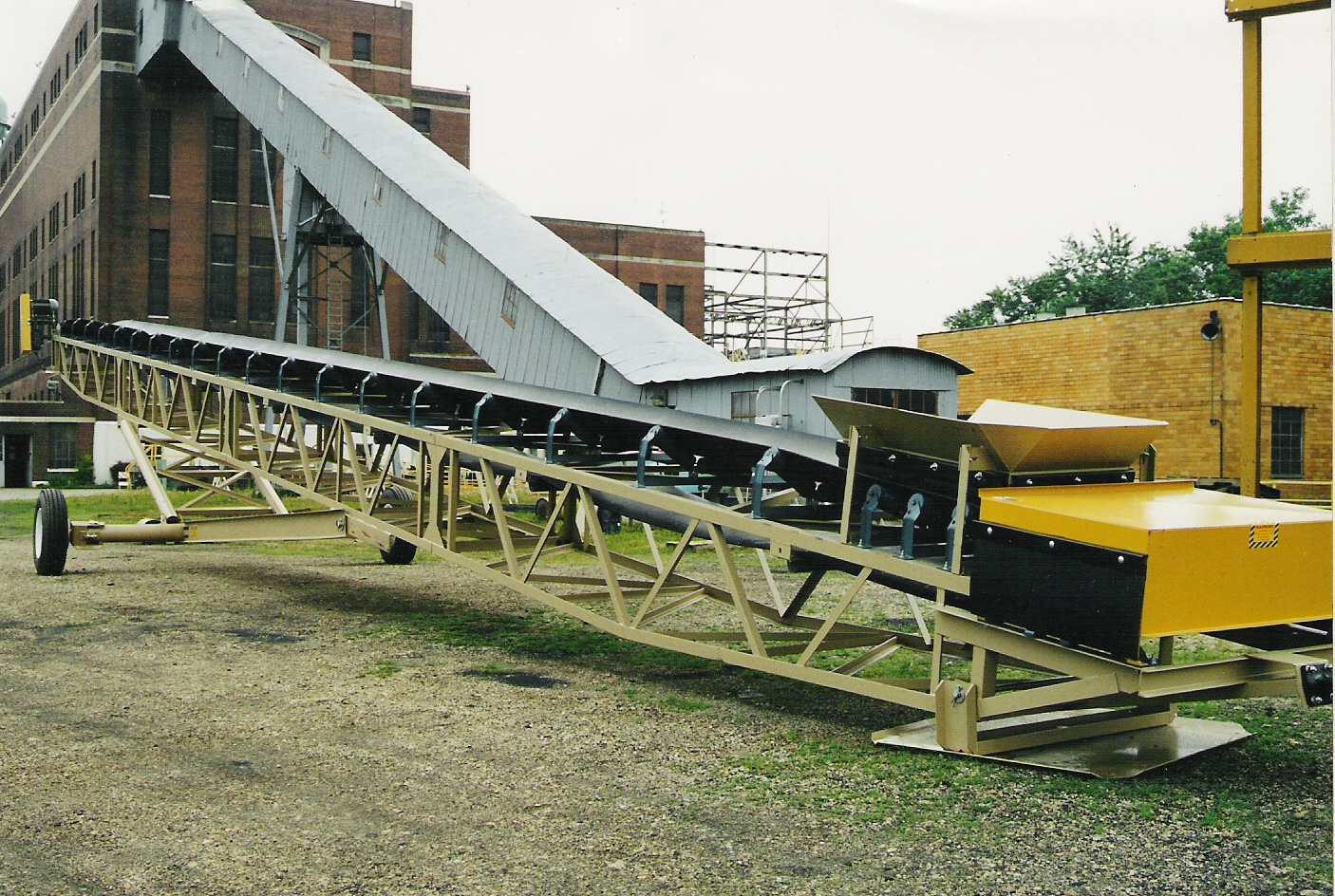

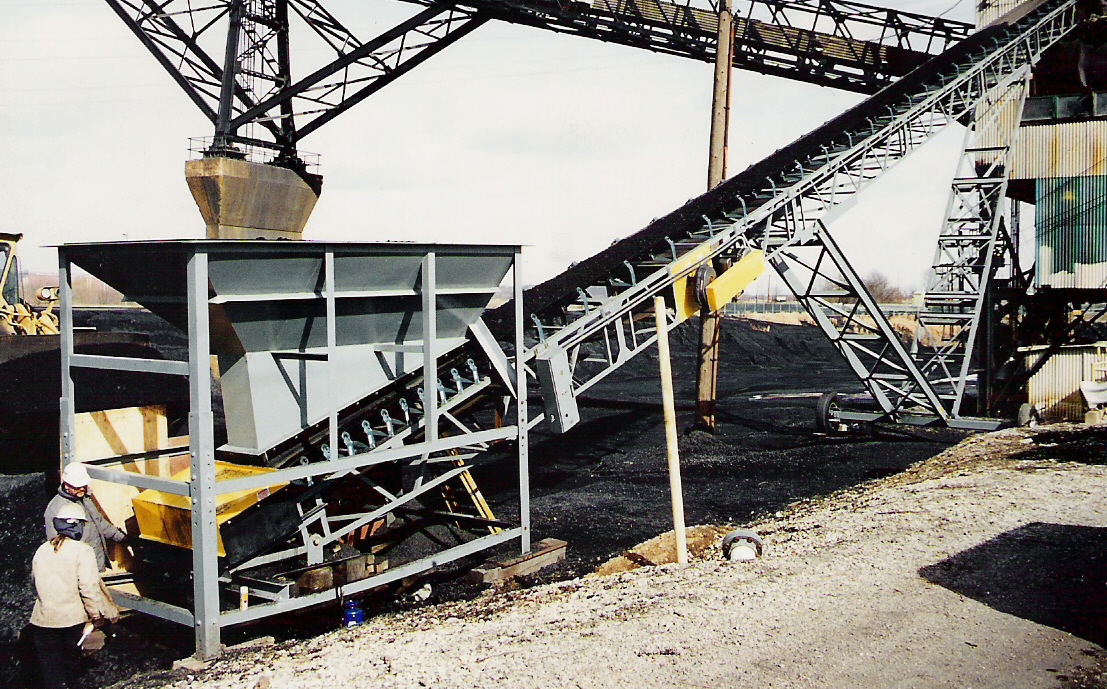

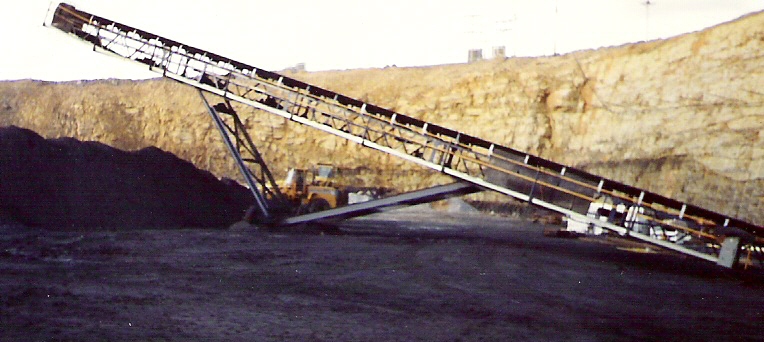

RADIAL STACKERS
STANDARD RADIAL STACKER SPECS
18" through 60" belt width
12" through 48" deep truss
Lagged drive pulley
Winged tail pulley
TEFC motor
Shaft mount reducer
4' skirted receiving hopper
18" screw take-ups
Swivel plate & tow hook
Cema B Idlers
2 ply 220 3/16 x 1/16 belting
Heavy duty undercarriage w/ adjustable height
Equipped w/ tailguard, head & tail pinch
guards and drive guard
Primed & painted
Designed @ 300 FPM
ADDITIONAL OPTIONS
Hydraulic Drive
Power Travel
Hydraulic Raise
Walkway with Handrail
Wrap Drive
Hood Covers
Gravity take-up
Discharge hood
CLICK ON THUMBNAILS FOR LARGER IMAGE
WOOLLEY FABRICATION
AND WELDING
**Contact us for additional information regarding
special orders.**
