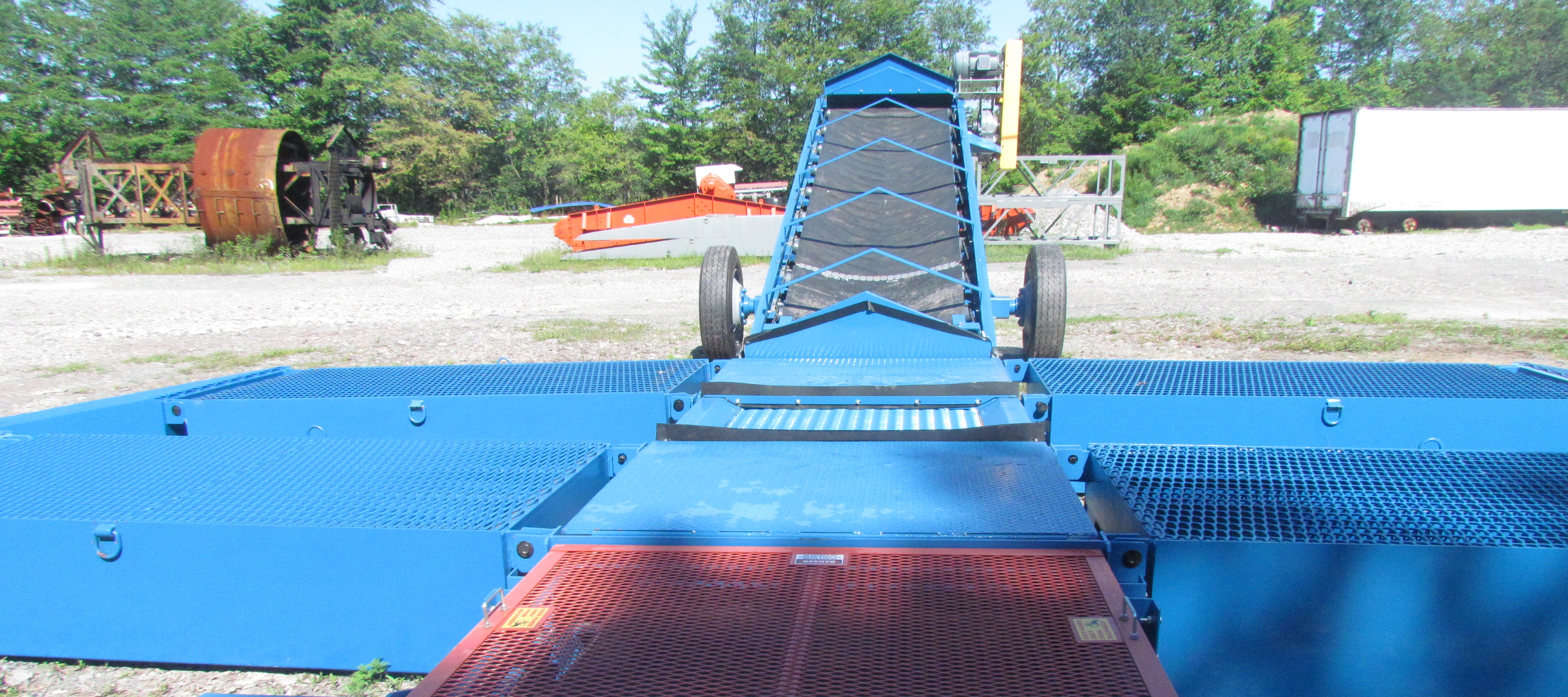

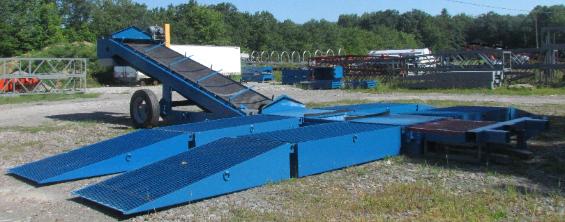

DRIVE-OVER UNLOADERS
STANDARD UNLOADER SPECS
48" belt width
15" channel main frame
14" Herringbone lagged head pulley 215/16 roller bearing
7" Winged tail pulley
18" wide-slot take-ups with 2 15/16 ball bearing
TEFC motor 25 H.P. 3 phase 230/460
#6 Shaft mount reducer
4" Cema C Idlers
2 ply 220 3/16 x 1/16 belting
2 11.22.5 tires and wheels
Pintle eye
Equipped w/ tailguard, head & tail pinch guards and
drive guard
Primed & painted
ADDITIONAL OPTIONS
Canvas  hood covers
Discharge hood
4 wheel
3 ply belt
Cleated belt
CLICK ON THUMBNAILS FOR LARGER IMAGE
WOOLLEY FABRICATION
AND WELDING
**Contact us for additional information regarding
special orders.**
